Nema 17 42mm Stepper Motor 1.3 Amp
$21.95

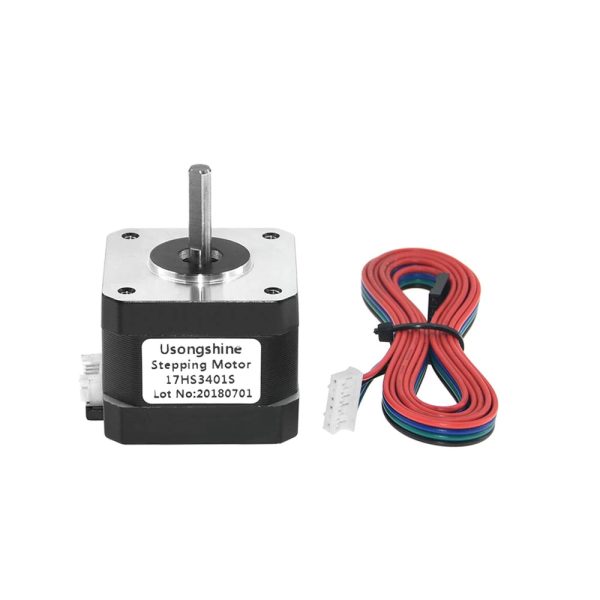

Nema 17 1.3 amp 42mm stepper motor. Supplied with a 1 metre XH lead.
Description
Nema 17 1.3 amp 42mm stepper motor. Supplied with a 1 metre XH lead, this stepper makes an ideal replacement for most 3D printer stepper motors. Comes with a D shaped shaft for easy pulley attachment.
Step angle accuracy: +-5% (full step, no load)
Resistance accuracy: +/- 10%
Inductance accuracy: +-20%
Temperature rise: maximum 80 degrees (rated current, two-phase conduction)
Ambient temperature———– 20deg~+50deg
Insulation resistance: minimum 100MΩ, 500VDC
Insulation strength ——– 500VAC for one minute
Additional information
| Weight | 0.150 kg |
|---|---|
| Dimensions | 6 × 4 × 4 cm |
