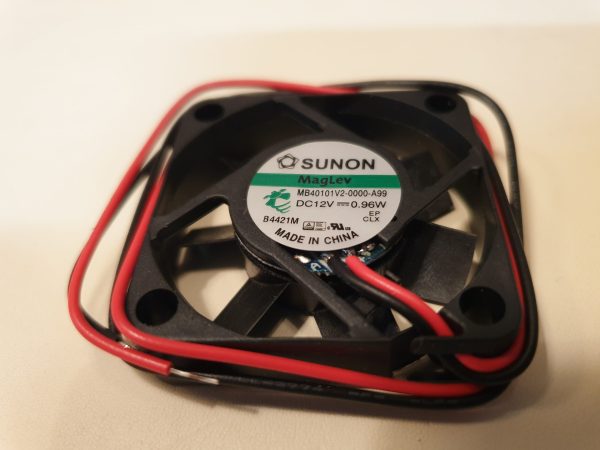

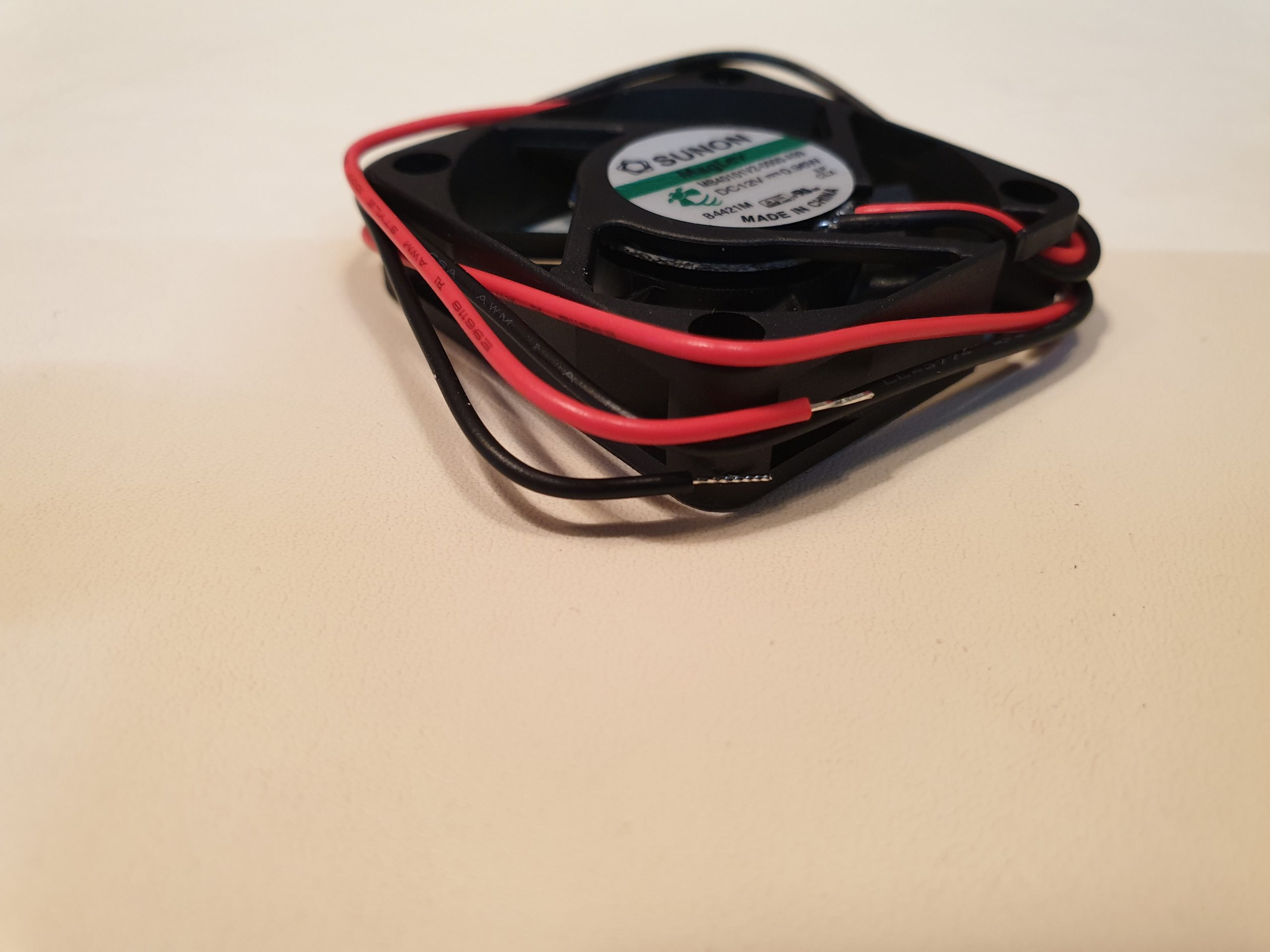

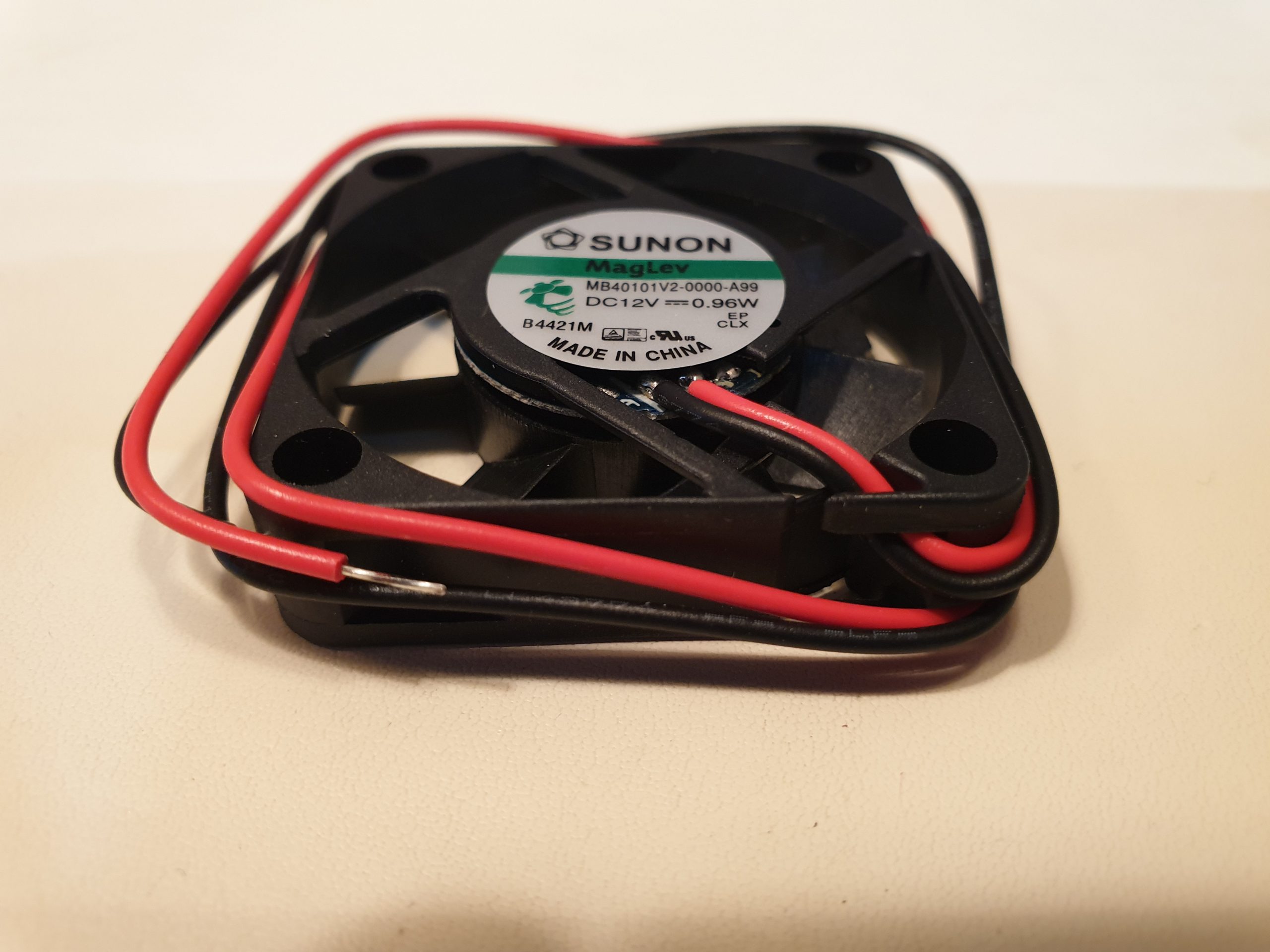

Sunon 40mm 12 volt Maglev silent Fan

Sunon 40x40x10 12 Volt Maglev Silent Fan

For decades, SUNON has consistently concentrated on its core motor technology, and as a result, we have accumulated various inventions and innovations in this field. We now provide 17mm~120mm DC Fan & Blower series and offer the most effective thermal solutions. In 1999, SUNON successfully released the MagLev Motor Fan, the first magnetic levitation motor in the world. Based on the excellent performance of this product, follow up motor fan products featuring higher flexibility, energy-efficiency, lower noise, and longer service life have been created. The product series is RoHS compliant and is also certified according to many quality management accreditation systems and has gained various accreditations such as UL, TUV, and VDE. According to a global mini motors market survey report published by Fuji Keizai (2009), SUNON’s share in DC Fan market tops the world, maintaining its leadership in the market.

Technical Specifications

Sunon Fans MB40101V2-000U-A99 technical specifications, attributes, and parameters.

Physical
Case/Package Axial
Housing Material Thermoplastic
Material Plastic
Weight 16.782918 g
Technical
Airflow 7 CFM
Bearing Type Vapo-Bearing
Current Rating 80 mA
Max Power Dissipation 960 mW
Operating Supply Voltage 12 V
Power Consumption 960 mW
RPM 5800 RPM
Termination 2 Wire Leads
Voltage Rating 12 V
Dimensions
Depth 10 mm
Height 40 mm
Width 10 mm
Compliance
Approvals CE, TUV, UL
Flammability Rating UL94 V-0
Lead Free Lead Free
RoHS Compliant
Weight 0.030 kg
Dimensions 5 × 5 × 3 cm
