3D Touch Bed Sensor Probe
$29.95
3D Touch Bed Sensor Probe
7 in stock
Description
The latest version of the popular 3D Touch bed leveling probe.

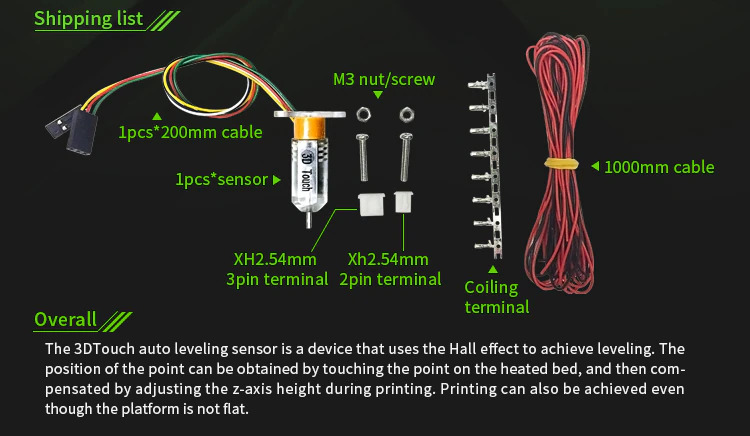

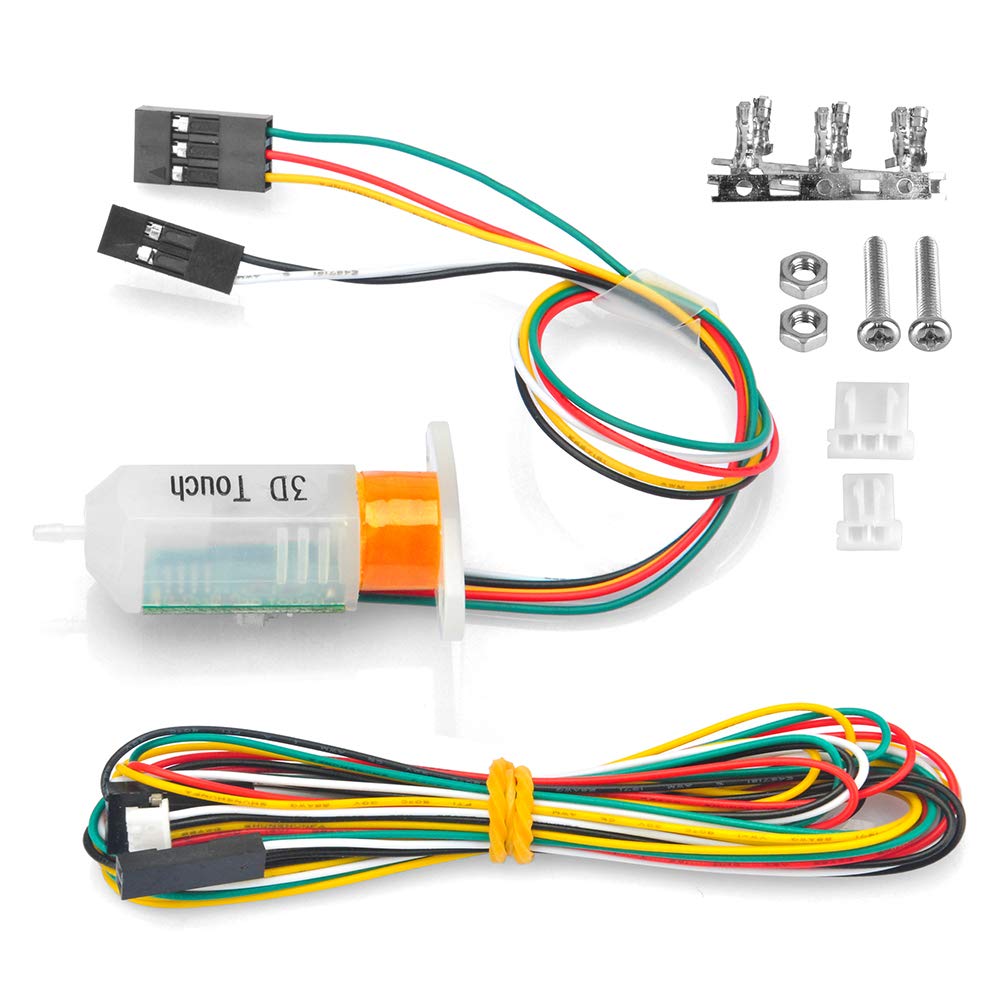

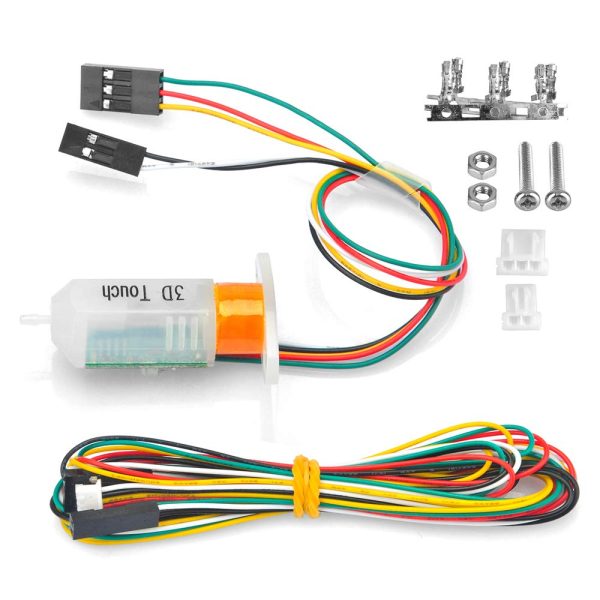

3D Printer TOUCH is an auto leveling sensor for 3D Printers that can precisely measure your print surface. It can greatly improve the printing precision of your 3D Printer, it works with nearly any kind of bed.
The probe works by “deploying” the touch probe – this is controlled by a servo style 3pin connector. Once the probe finishes it’s probes the pin is safely stowed away from the bed surface.

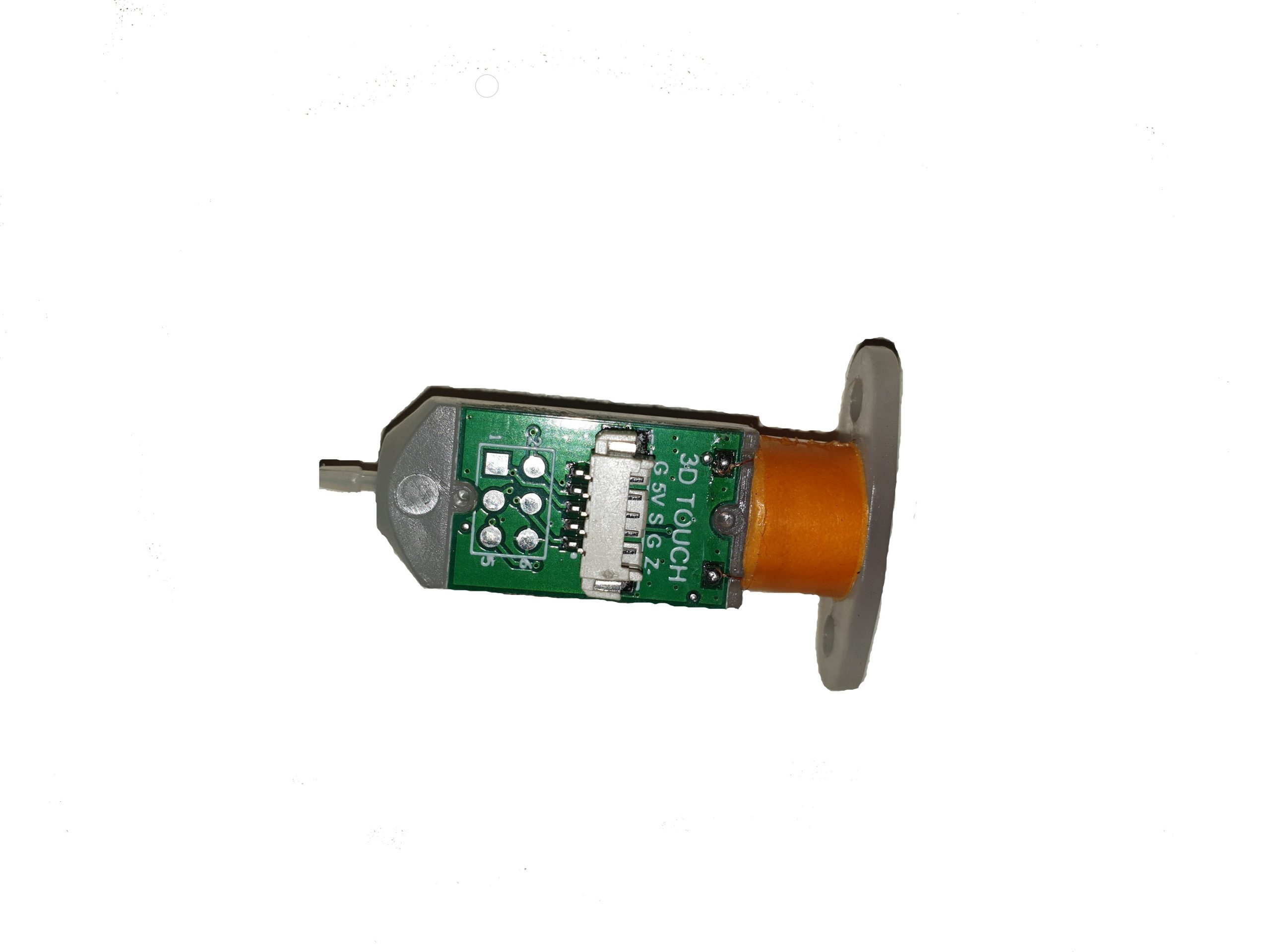

Wiring :
3Pin : Â Brown(- , GND) Â Â Red(+5V) Â Â Orange(control signal)
2Pin : Â Black(-, GND) Â Â Â White(Zmin)
Voltage : 5V
Current : 15mA
Maximum(Peak) Current : 300mA
Case Material : Â Polycarbonat(PC)
Case Color : Semitransparent White

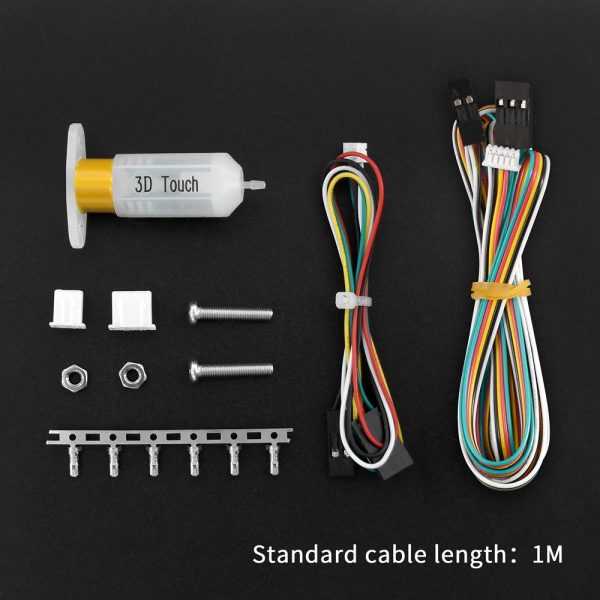

Cable Length : 150mm
Weight : 0.35 oz ( 10g )
Here is one of the many guides to install this probe, might want to turn the sound off…
Additional information
| Weight | 0.08 kg |
|---|---|
| Dimensions | 12 × 5 × 2 cm |
